Product features and advantages
· National invention patent technology.
· VT, RR, MV and Flow can be configured according to patient status.
· The parameters can be configured to the 《AHA American Heart Association Resuscitation》guidelines and various clinical needs.

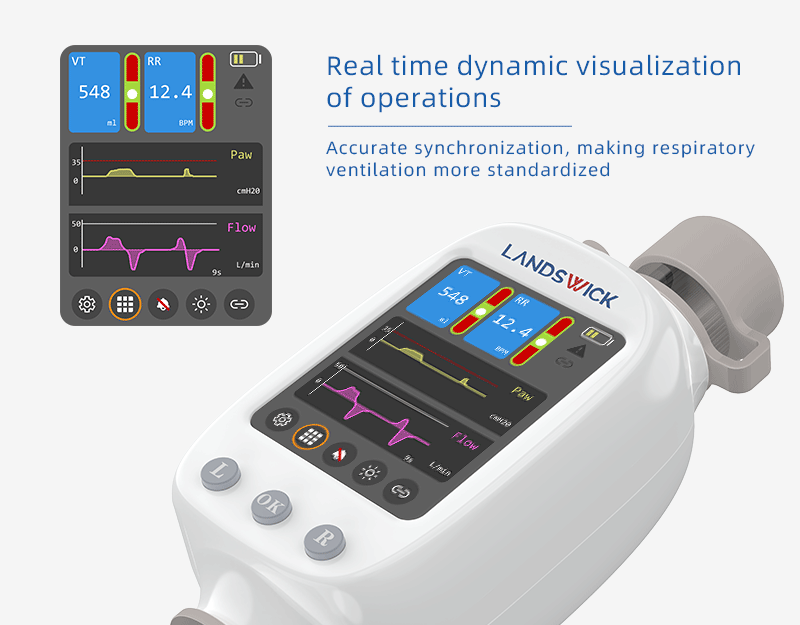

· Monitor breathing parameters: guide medical staff to accurately press the simple respirator.
· Standard interface: universal airway access for most simple respirators.
· Bluetooth information transmission, data storage and real-time monitoring APP
· Field first aid, pre-hospital first aid, hospital first aid.
· Training function: practical operation, test record and evaluation function APP.
Main technical parameters
Model | Nano100AP | Nano100N |
| Applicable user | Adult>33kg 10kg<Child≤33kg | Newborn≤10kg |
Dimension （L×W×H） | 145mmx56mmx53mm | |
Flow （Flow rate） | 0-120L/min | 0-12L/min |
Vt （Tidal volume） | 0-1500mL | 0-100mL |
RR （Respiratory rate） | 0~99Times per Minute（bpm） | |
MV （Minute ventilation） | 0-30L/min | 0-4L/min |
| Paw （Airway pressure） | 0-100cmH2O | |
Ppk （Peak airway pressure） | ||
