Operation video of electro-pneumatic cardiopulmonary resuscitation machine
Product Features and Advantages
· Fully complies with the latest standards of "American Heart Association AHA 2015 Cardiopulmonary Resuscitation Operation Guidelines"
· The compression frequency can be adjusted to 120 times/min, and can provide a variety of compression ventilation mode options, and the compression depth can be continuously and accurately adjusted
· With anti-mis-touch function, the control panel can be locked with one key

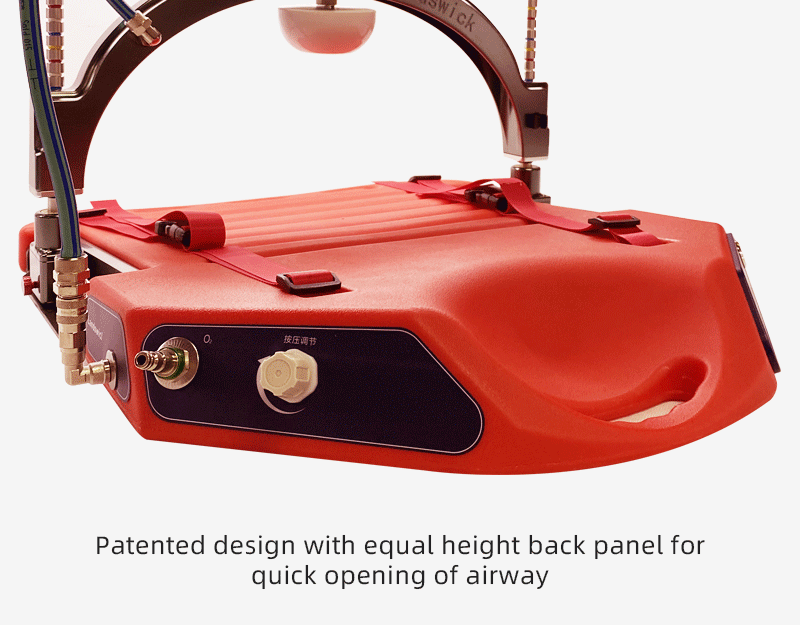

· A contoured back panel with a patented appearance design, which can open the airway at the first time and facilitate intubation

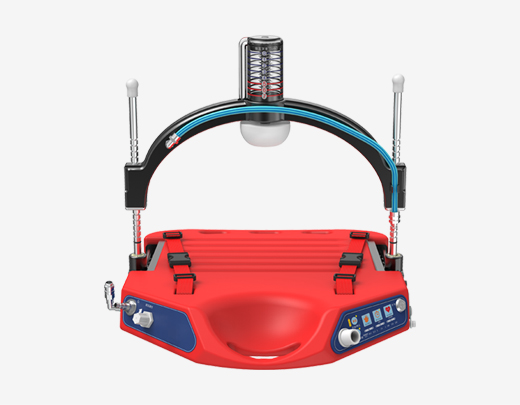

· Unique double-column fixed, bow-shaped compression system; can indicate the thickness of the chest, the compression system can quickly
· Won the title of high-tech product in Guangdong Province
· Own computer software copyright, provide software upgrade service for equipment
product performance
① safe and reliable· With battery power display and charging reminder function
· Ventilation state sound prompt function: 5 presses before ventilation, short sound prompts, and ventilation state sound long sound prompts until the end of ventilation
· Can work normally in extremely cold and hot environments from -40°C to +50°C
· With IPX4 waterproof function
② Multi-configuration, multi-purpose
· Portable configuration with multi-purpose backpack and field configuration with portable oxygen power rack
· Can be fixed on various boarding stretchers and transfer stretchers, suitable for various emergency transfer environments
· Can be used with the transfer oxygen power system and the oxygen supply system of the hospital center
③ Flexible operation, easy to carry
· Simple structure, can be put into emergency work quickly
· Small size, easy to carry, the weight is only 6.5Kg including battery

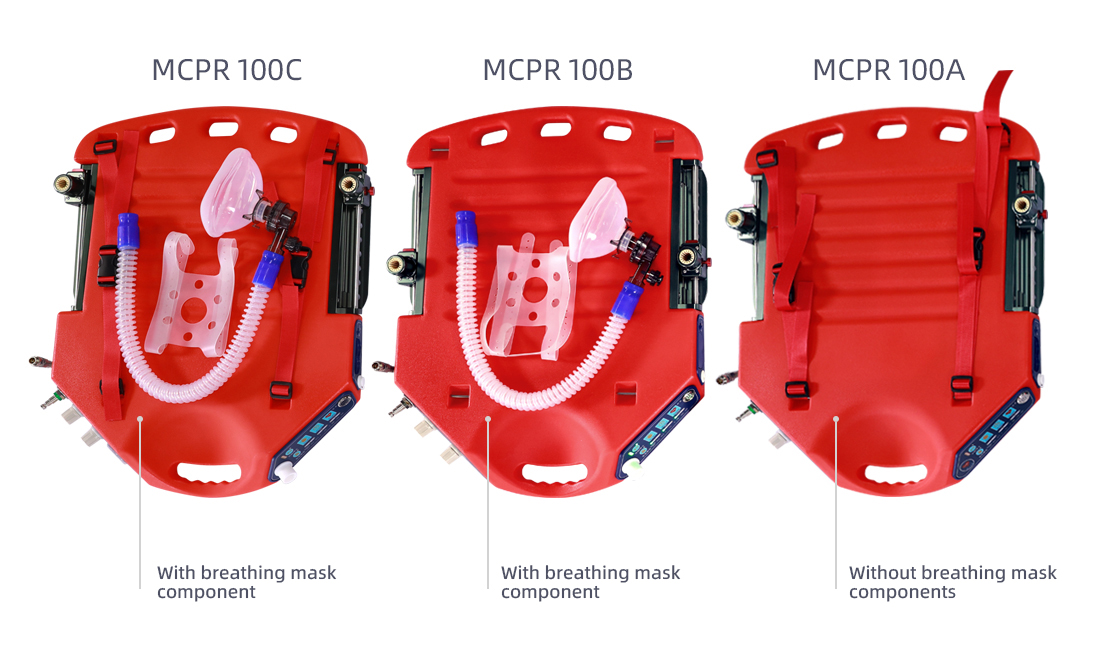

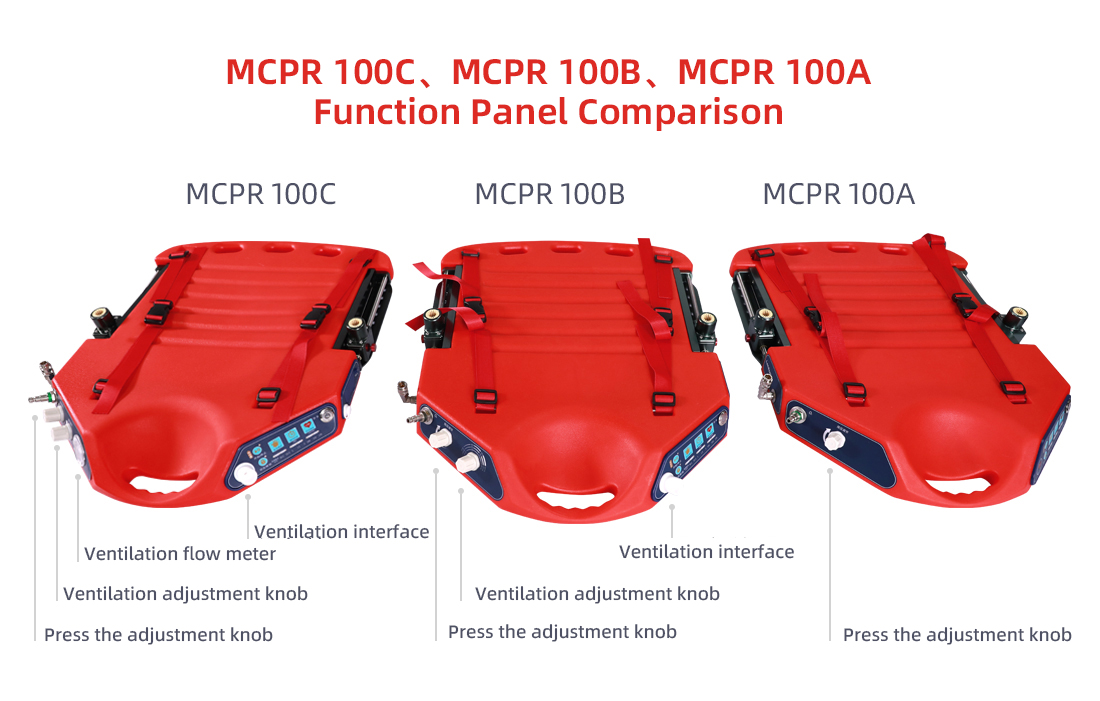

MCPR 100A, MCPR 100B and MCPR 100C main technical parameters
| Technical Parameters | MCPR 100A | MCPR 100B | MCPR 100C |
| Press drive mode: electro-pneumatic | ✓ | ✓ | ✓ |
| Compression frequency: 100, 110, 120 times/min adjustable | ✓ | ✓ | ✓ |

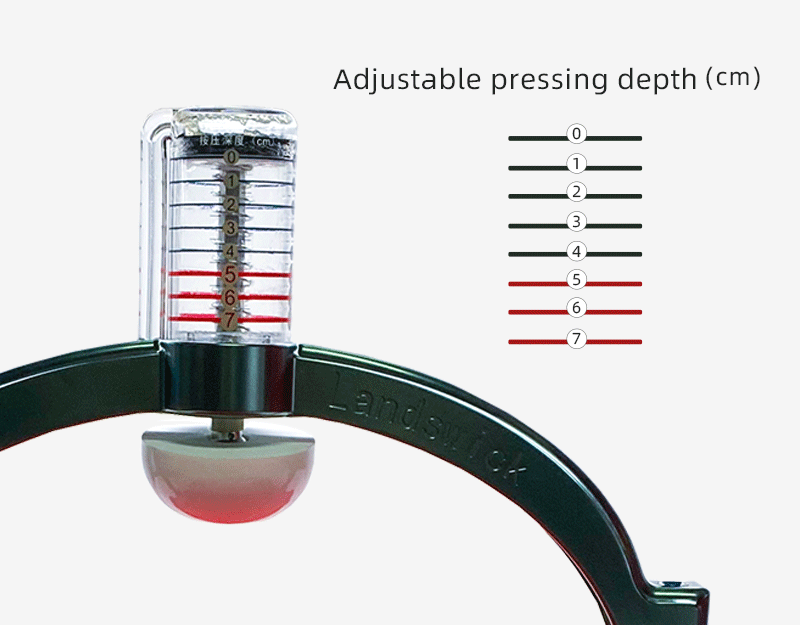

| Compression depth: 0~7cm visible, continuously and accurately adjustable | ✓ | ✓ | ✓ |
| Ventilation volume range: 0~1500ml, suitable for general population and special population with large vital capacity | ✓ | ✓ | ✓ |
| Compression mode: fully automatic synchronous compression breathing 30:2 mode, 15:2 mode, continuous compression mode, CCV mode | Manual ventliation | ✓ | ✓ |
| The continuous working time of the battery is more than 8 hours, and there is a power prompt function, AC and DC power supply can be used | ✓ | ✓ | ✓ |
| Ventilation real-time monitoring | ✓ |
